48x100 Hardware Cloth galvanized 1/4 inch welded rabbit cage wire mesh
Product Description
Technical specifications:
| Product Name | 1/4x1/4inch,1/2x1/2inch,1x1inch,2x2inch Stainless Steel Welded Wire Mesh |
| Certificate | SGS |
| Opening size | 1/4x1/4inch,1/2x1/2inch,1x1inch,2x2inch |
| Technique | Dutch Woven Wire Mesh |
| Material | Low carbon iron wire, galvanized iron wire, stainless steel wire SS304,316L etc |
| Application | Welded wire mesh are widely used in construction reinforcent, the ground gor the tunnels, bridges, highway,airport and wharf, also in construction of wall body. |
II. Advantages of reinforcing welded wire mesh
1. High intensity anti-high temperature.
2. Better strength and strong integration
3. Flat & even surface and strong structure
4. Anti-rust property
5. Not easy to loosen even be cut into parts or exerted force on the parts
6. A long service life and the service life can reach to several decades
III. Surface treatment of reinforcing welded wire mesh
1. Hot-dipped galvanized after welding (GAW);
2. Hot-dipped galvanized before welding (GBW);
3. Electro galvanized after welding (GAW);
4. Electro galvanized before welding (GBW);
5. PVC coated welded wire mesh
IV. Specification of reinforcing welded wire mesh
Welded wire mesh specification
1.MATERIAL : stainless steel welded wire mesh
2.PROCESSING: welding by stainless steel wires ,fixed by the linking accessories to the post.
3. POST AVAILABLE: square post, opening 48x48mm, 60x60mm, 75x75mm, 80x80mm
4. FINISH TREATMENT: stainless
5. FEATURE :high stength,good steel nature capacity,wonderful shape,wide vision,easy
to install, feel comfortable and bright.
6. APPLICATION: for road, railway, airport, residence district, seaport, garden, feeding,ect.
| Opening | Wire Diameter<BWG> |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| and more mesh size |
Welded wire mesh Use
Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
Welded wire mesh can be processed into wire mesh fence which can be used in Garden,yard,ground,railway,highway.

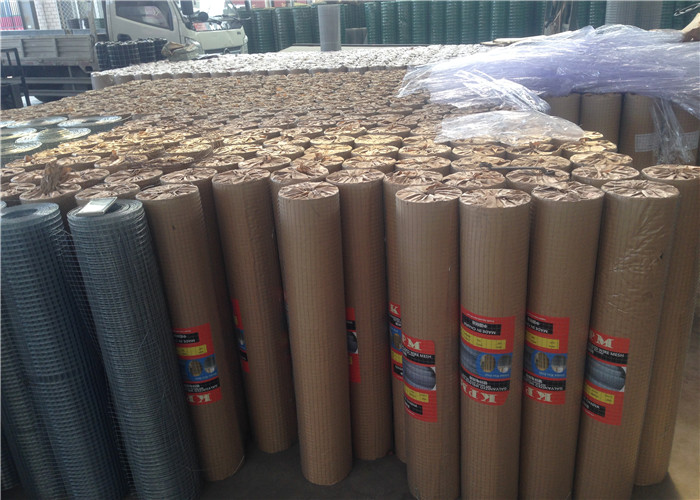

Packing&shipping
1.waterproof paper
2.plastic film
3.plastic film and pallets
4..waterproof paperand plastic film
5.as customers request.
Our Exhibition
